Four Needle Ampoule Filler

Four Needle Ampoule Filler

275000.00 - 325000.00 INR/Piece

Product Details:

  • Type Pharmaceutical Packaging Machine
  • Material SS
  • Computerized No
  • Control Mode Automatic
  • Voltage 230V Volt (v)
  • Weight (kg) 275 Kgs Kilograms (kg)
  • Dimension (L*W*H) 900mm X 900mm Millimeter (mm)
  • Click to View more

Four Needle Ampoule Filler Price And Quantity

  • 275000.00 - 325000.00 INR/Piece
  • 1 Unit

Four Needle Ampoule Filler Product Specifications

  • 900mm X 900mm Millimeter (mm)
  • 275 Kgs Kilograms (kg)
  • SS
  • No
  • Automatic
  • 230V Volt (v)
  • Matt
  • Pharmaceutical Packaging Machine
  • 1 year

Four Needle Ampoule Filler Trade Information

  • Ahmedabad
  • Letter of Credit (L/C) Letter of Credit at Sight (Sight L/C) Telegraphic Transfer (T/T) Cheque
  • 5 Unit Per Month
  • 6 Week
  • Contact us for information regarding our sample policy
  • Wooden Packing
  • Australia South America Eastern Europe Middle East Africa Central America Western Europe Asia North America
  • All India
  • ISO 9001

Product Description

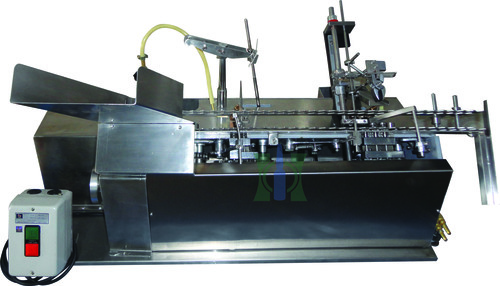

Four Needle Ampoule Filler

Precisely formulated four head filling and sealing machine for ampoules are built with quality components and even offered at HARSIDDH STERILEPACK (INDIA) with great customization. The contact and non-contact parts are manufactured with SS AISI 316L and AISI 304 respectively. Some of the features are as similar to other sealing and filling models apart from the filling size and capacity with number of filling heads.

Four head ampoule filler & sealer are used to fill 0.5ml to 5ml with 4 head in a single dose applied to 1ml to 5ml open mouth glass ampoules. The production capacity of this machine is 60 to 90 ampoules per minute. The machine is used to fill all types of injectable liquids and is operating based on slant travelling principle. It is designed and executing the operation following the ampoule neck dimension, thickness and size variations. Conventional feed system has been replaced with rectangle feeding and the desired production capacity can be achieved with auto-feed, transfer, nitrogen flushing, filling, heating and sealing features. The filling stops automatically if there is no ampoule; the inbuilt feature is enhanced comprehensively in this machine.

This cGMP model is quite compact with minimum change over time. As a leading manufacturer & exporter of four head ampoule filling and sealing machine, HARSIDDH STERILEPACK (INDIA) has incorporated very important features in the system that are useful for bulk productivity, easy operation and low maintenance.

  • Compact and heavy structure .
  • Contact parts made from Stainless Steel AISI 316L.
  • Ampoule transfer through cam mechanism system avoid no vibration.
  • Non-contact parts made from Stainless Steel AISI 304, Mild Steel, Brass etc.
  • Dosing Syringes/pumps and Filling Needles made of Stainless Steel AISI 316.
  • All drives of the unit synchronized with Single motor.
  • Pre & Post nitrogen flushing unit.
  • Cassette magazine for ampoules drop out.
  • Extra smooth ampoule revolving unit at the sealing station.
  • Pre-Heating unit for thick glass ampoules.
  • Easy regulation of oxygen, LPG and nitrogen gas with flow meters.
  • No wastage of expensive liquids with No Ampoule No Filling feature.
  • Easy regulation of speed with variable frequency drive.
  • Vertical tray collection unit duly filled and sealed ampoules.
  • PLC with touch screen HMI (Optional).
  • Servo Based Filling Systems (Optional).
  • Peristaltic Pumps for high accuracy of fill the costly liquids (On customer request).
  • VFD drive for easy speed regulating (delta make).
  • blower for blowing the flame heat outside of sterile room.
  • Stainless Steel west tips collector at the bottom side of machine



300 Ampoules / Min


Stainless Steel 316L


2950 MM (L) X 1100 MM (W) X 1800 MM (H)



Filling System


Driven Type



415 V


4 HP


1200 Kg


50 Hz

Number Of Phases


Surface Treatment

Zinc Plating, Hard Chrome Plating, Anodising, Nickel Plating

Output Per Hour

300 Ampoules / Min

Machine Type


Country of Origin

Made in India

Ampoule Size

1ML To 10ML


Pharma Grade ( Matt Finish )

Filling Type




Number Of Heads For Sealing

Eight Head

Filling Accuracy

+/- 1 %

Gas Pressure


Material Feed
