Pilot Scale Ampoule Filling Machine

125000.00 - 195000.00 INR/Piece

Get a Price/Quote

Product Details:

Type Pharmaceutical Packaging Machine
Material SS
Computerized No
Control Mode Automatic
Voltage 415V Volt (v)
Weight (kg) 75 Kgs Kilograms (kg)
Dimension (L*W*H) 900mm X 500mm X 1000mm Millimeter (mm)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Pilot Scale Ampoule Filling Machine Price And Quantity

Price Range 125000.00 - 195000.00 INR/Piece
Minimum Order Quantity 1 Unit

Pilot Scale Ampoule Filling Machine Product Specifications

Dimension (L*W*H) 900mm X 500mm X 1000mm Millimeter (mm)
Weight (kg) 75 Kgs Kilograms (kg)
Type Pharmaceutical Packaging Machine
Color Matt
Warranty 1 Year
Material SS
Control Mode Automatic
Computerized No
Voltage 415V Volt (v)

Pilot Scale Ampoule Filling Machine Trade Information

FOB Port Ahmedabad
Payment Terms Letter of Credit (L/C) Letter of Credit at Sight (Sight L/C) Telegraphic Transfer (T/T) Cheque
Supply Ability 10 Unit Per Month
Delivery Time 3 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details Wooden Packing
Main Export Market(s) Western Europe Central America Eastern Europe Middle East South America Asia North America Australia Africa
Main Domestic Market All India
Certifications ISO 9001

Product Description

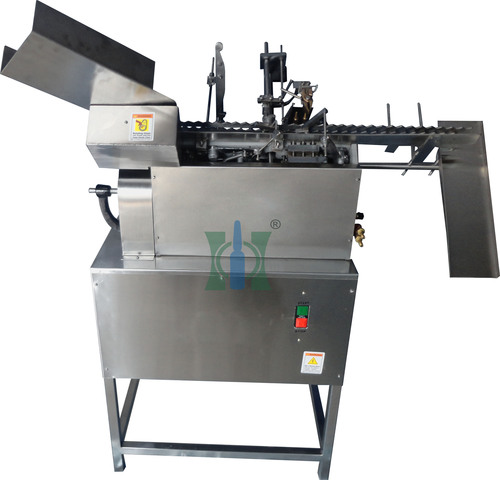

Pilot Scale Ampoule Filling Machine

Our single head ampoule filling and sealing machine is mostly used in pharmaceutical injection preparation For fill and close sterile glass ampoules.

Technical Specification :

Model	HFS-30 (Slant Travel) Off-Line model
No. Of Head	One
Ampoule Size	1ml to 25ml (Dia. 10mm to 22mm)
Production / Minute	10 to 15
Filling Accuracy	+ 1%
Filling Type	Piston Pumps Type Filling (Volumetric)
Required Gas For Sealing	LPG + Oxygen
Pre Heating	Available
Nitrogen Flushing	Available (Pre & Post)
Contact Parts	Stainless Steel S 316
Non-Contact Parts	Stainless Steel 304 / M.S. Powder Coated / Nickel Plated
Power Required	0.5 H.P., 380-415V, 3Phase, 4 Wire Systems
Dimension	910mm (L) X 650mm (W) X 950mm (H)
Net Weight	70
Gross Weight	180 Approx

Salient Features :

GMP model
Compact and vibration free structure
All Contact parts made from Stainless Steel AISI 316 material
Other parts (non-contact) made from Stainless Steel AISI 304, Mild Steel, Brass etc
Stainless Steel AISI 316 Dosing Syringes and Filling Needles
Single motor synchronized all drives of the unit
Smooth ampoule rotating unit at the sealing station
Pre & Post nitrogen flushing unit
Pre Heating unit available for thick glass ampoules
Flow meters for Nitrogen, LPG and Oxygen gas regulation easier
No Ampoule No Filling function avoid consumption of expensive liquids
Minimum time to change over ampoule size
Variable frequency drive for regulating machine speed easier through speed pot
Vertical tray collection unit duly filled and sealed ampoules
Stainless Steel west tips collector for cutting the glass ampoules tips while sealing
Suitable for all open mouth glass ampoules
